PM Manual Variable Optical Attenuator
PM Manual Variable Optical Attenuator
Price :
0.00
Detail



      TEST DATA SHEET






Description: VOA,1550nm ,hand adjustment, SMF-28e fiber with 900um loose tube, 1m,FC/APC connectors,26x16x8mm            P/N:VOA-1X1-P-1310/1550-900L-FA
           S/N:1600175






ParametersUnitSpecificationTest Data
Center Wavelengthnm15501550
Operating Wavelength Rangenm±40±40
Max.Attnuation
nm6060
Min. Insertion Loss dB≤0.80.51
Return LossdB≥5057
PDL
dB<0.100.02
Fiber TypeSMF-28e fiber with 900um loose tube
Connector Type
FC/APC
Package Dimensions
mm26X16X8
Max. Power
Mw500
Fiber Lengthm1
Max. Tensile LoadN5
Operation Temperature -5 to 70
Storage Temperature-40 to 85
Remarks




          According to  the above  graphics , turn the knob clockwise to  increase gradually the value of  the attenuation.

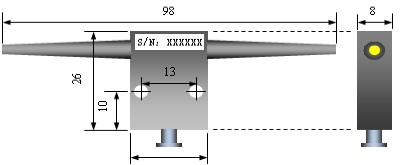

Package Dimensions
