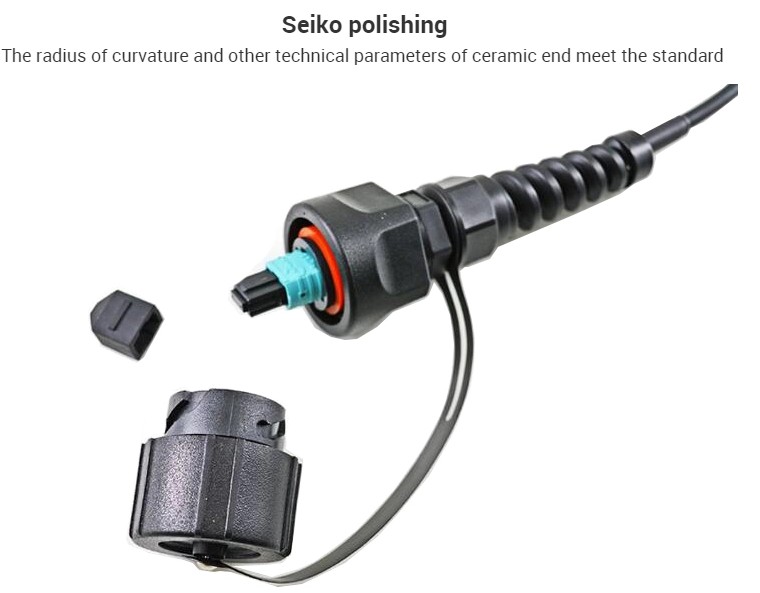

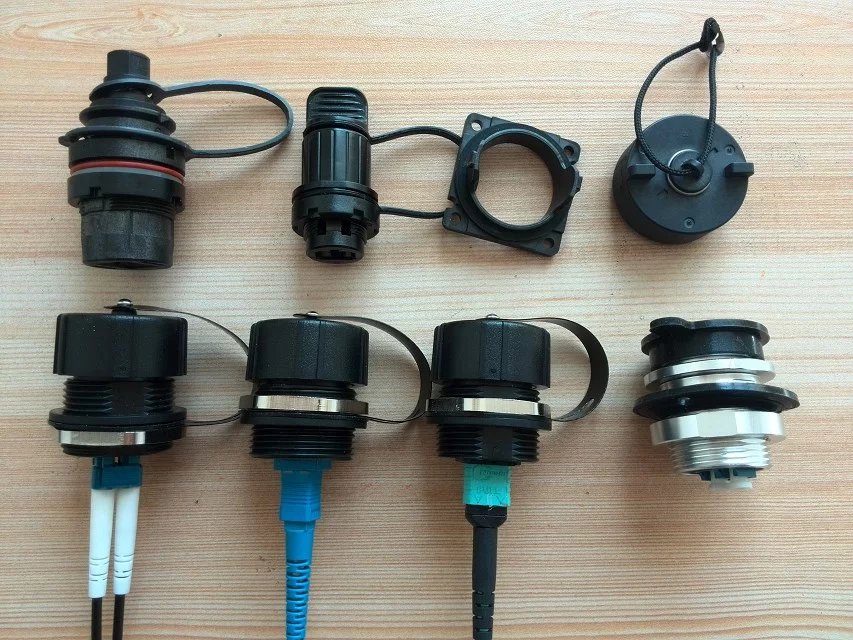

Waterproof Connector
comment:0
Product Details
Features
12.JPG1, Good mechanical and environmental characteristics;
2, Flame retardant characteristics meet the requirements of relevant standards;
3, The mechanical characteristics of jacket meet the requirements of relevant standards;
4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
5, Meet various requirement
s of market and clients


Application


3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX,WIMAX,

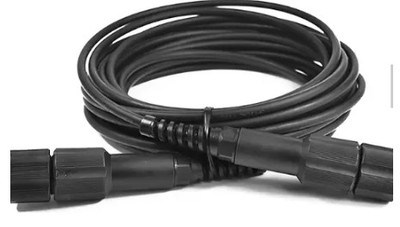

BBU, RRU, RRH, LTE.Multimode DLC/PC DLC/PC Outdoor Optical Cable Assembly GYFJH 2A1a(LSZH) 7.0mm 2 Cores with protected branch

Product Paramenters
Iterm


Test Condition
Single Mode
Multi Mode

Optical

Characteristics

IL
UPC
SM@1310nm/1550nm MM@850nm/1300nm
≤0.5dB
≤0.5dB

APC
1310nm/1550nm
≤0.5dB

RL
UPC
SM@1310nm/1550nm MM@850nm/1300nm
≥55 dB
≥35 dB

APC
1310nm/1550nm
≥65 dB

Mechanical

Characteristics (EL)

Impulse Test
8 times
<0.1 dB
<0.1 dB
Vibration Test
10-60Hz,1mm
<0.1 dB
<0.1 dB
Durability Test
>1000 times
<0.1 dB
<0.1 dB
Tensile Test
> 100N
<0.1 dB
<0.1 dB

Enviromental

Characteristics (EL)

T C
-25℃~+70℃, 2 hours
<0.2 dB
<0.2 dB
High Temperature
+80℃, 2 hours
<0.2 dB
<0.2 dB
Low Temperature
-40℃, 2 hours
<0.2 dB
<0.2 dB
Humidity&Heat
+40℃,90-95%RH, 2 hours
<0.2 dB
<0.2 dB

psb (8).jpg
