1x1 Mechanical Optical Switch
|
1x1 Mechanical Optical Switch
Code : GP-S7063
Brand : GAPHO
Detail

Product Description:

The 1x1 fiber optic switch connects optical channels by directing orblocking an incoming optical signal into the output fiber. This is achievedusing a patent pendingopto-mechanical configuration and activated via an electrical control signal,A latching version preserves   the selected   optical path after thedrive   signal has been removed, while the non-latching versions default toeither the open or closed state when   power is   removed.   The switch hasintegrated electrical positionsensors.The new material based advanced design significantlyreduces moving part position sensitivity,   offering unprecedented high stabilityas well as unmatched low cost.



Applications

Features

Channel   Blocking

Unmatched Low   Cost

Configurable   Add/Drop

Low Optical Distortions

System   Monitoring

High Isolation

Instrumentation

High   Reliability


Epoxy-Free Optical Path




Specifications:


Parameters

Specifications

Unit

Operating   Wavelength

1260~1620(SM)850(MM)

nm

Insertion   Loss

0.6

dB

Wavelength   Dependent Loss

0.25

dB

Polarization   Dependent Loss

0.05

dB

Temperature   Dependent Loss

0.25

dB

Return   Loss

SM55    MM35

dB

Cross   Talk

SM50    MM35

dB

Switch   Time

8

ms

Repeatability

±0.02

dB

Durability

107

times

Operating   Voltage

3 or 5

V

Switch   Type

Non-Latching/Latching


Operating   Temperature

20~70

Storage   Temperature

40~85

Optical   Power

500

mW

Dimension

27.0L×12.0W×8.2H

mm

PinConfigurations:

Type

Optical Path

Electric   Drive

Status Sensor

1×1

Pin 1

Pin 5

Pin 6

Pin 10

Pin 2-3

Pin 3-4

Pin 7-8

Pin 8-9

Latching

Non‐light

--

--

GND

V

Close

Open

Open

Close

P1-P2

V

GND

--

--

Open

Close

Close

Open

Non-Latching

Non‐light

--

--

--

--

Close

Open

Open

Close

P1-P2

V

--

--

GND

Open

Close

Close

Open

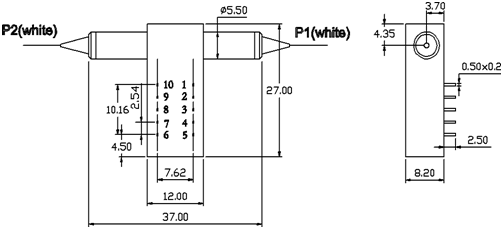

Mechanical Dimensions(Unit:mm)



OpticalRoute



OrderingInformation:




11









Type

Wavelength

Switch Type

Voltage

Fiber Type

Package

Fiber Length

Connector


Special00

10601

Latching1


Non-latching

2



MINI   Latchi ng3


MINI   Non-la tching4


Special0

3V=3

SM28=1

Bare fiber=1

0.25m=1

None=1

FC/PC=2

FC/APC=3

SC/PC=4

SC/APC=5

ST/PC=6

LC/PC=7

Duplex   LC=8

Special0


CL2   13103

14104

5V=5

Special0

50/125=5

62.5/125=6

Special0

900um tube=3

Special0

0.5m=2

1.0m=3

Special0


15505






6506






7807






1260-1610=A






1310/15509






850=8






Special0






For drawings, technical data or samples configuration other than stated above, please feel free to contact us: sales@gapho.com
