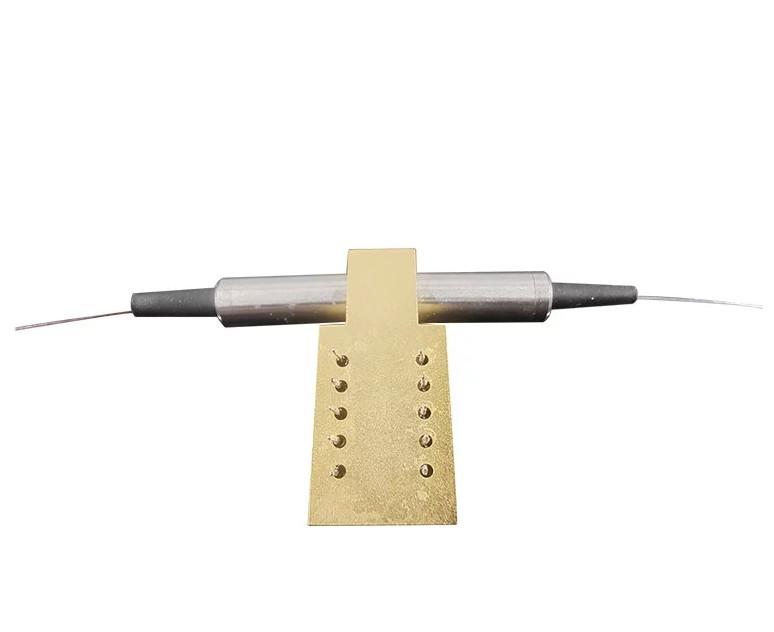

2X2 Bypass Optical Switch


GAPHO 2×2B Byass Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12×(H)8.2mm. It is an ideal component for OADM,OXC system monitoring and protection. With compact package, it can be easy to

integrate into a high density optical communication system.


Specifications

Parameters

Unit

1×2 optical switch (SW-1x2)

Operating Wavelength

nm

SM:1260~1620

MM:850±40

Test Wavelength

nm

1310 / 1550

850

Insertion Loss

dB

≤0.7(typical:0.5)

Wavelength Dependent Loss

dB

≤0.25

Temperature Dependent Loss

dB

≤0.2

Polarization Dependent Loss

dB

≤0.05

Return Loss

dB

SM≥50,MM≥30

Crosstalk

dB

SM≥55,MM≥35

Repeatability

dB

≤±0.02

Swtich Time

ms

≤8

Durability

times

≥10 million

Operating Voltage

V

3.0 or 5.0

Optical Power

mw

≤500

Operating Temperature

-5~+70

Storage Temperature

-40~+85

Operating Humidity

5~95

Dimension

mm

L27xW12xH8.2

Note:1. All parameters are tested at room temperature;

         2. All parameterses excluding connector, if with connector add 0.2dB IL for each.
