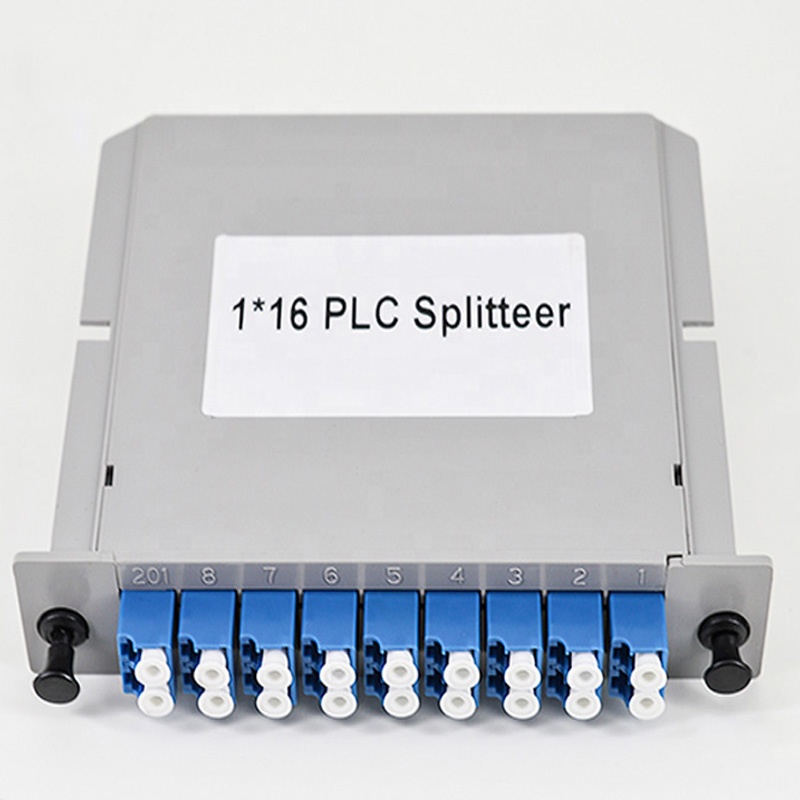

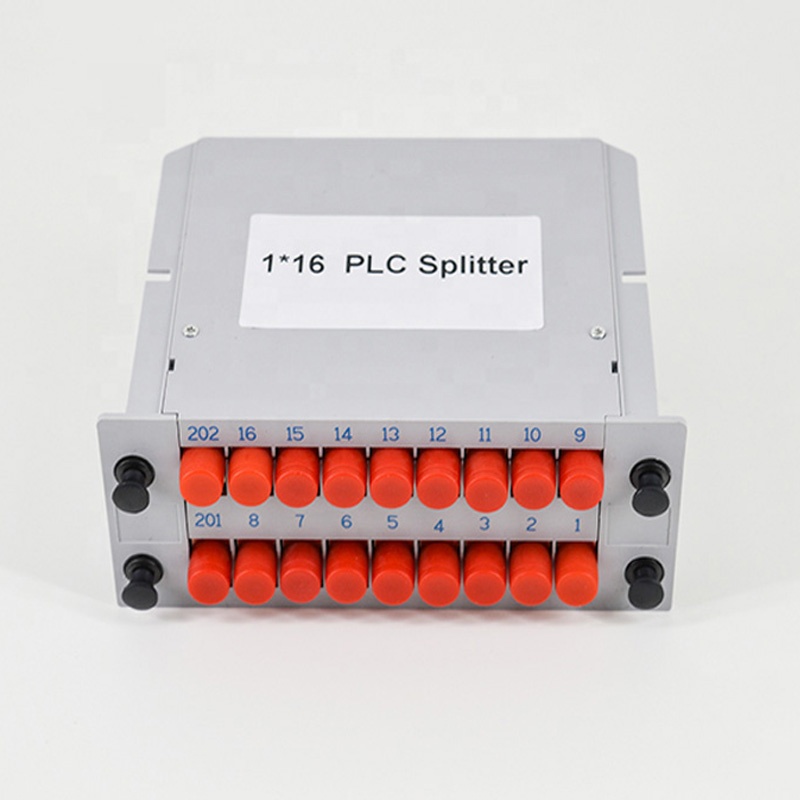

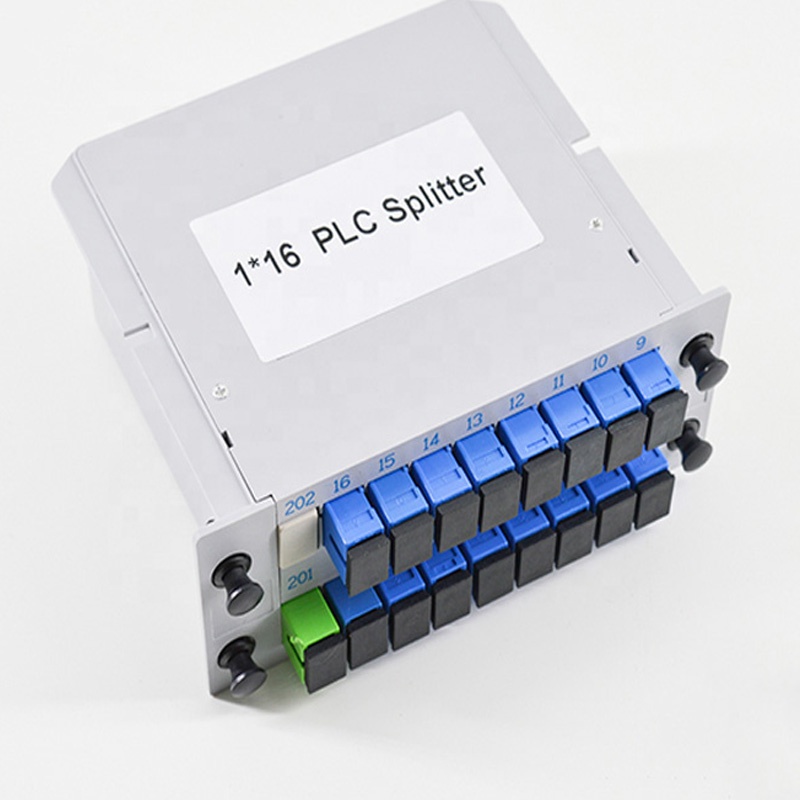

LGX Module
comment:0
Product Details

Technical Parameter

Parameter
Unit
1×2
1×4
1×8
1×16
1×16
1×32
1×64
Fiber Type
/
G.657A, or customized

Operating

Wavelength

nm
1260~1650

Insertion

Loss

P
Max
dB
4.0
7.0
10.4
13.5
16.8
20.5
S
Max
dB
4.2
7.3
10.6
13.8
17.1
20.8
PDL
Max
dB
0.2
0.3
0.3
0.3
0.3
0.5
Loss Uniformity
Max
dB
0.6
0.8
1.0
1.4
1.6
2.0
Return Loss
Min
dB
55(P Grade)/50(S Grade)
Directivity
Min
dB
55

Operating

Temperature

-40 ~ +85

Storage

Temperature

-40 ~ +85

Dimension

(L×W×H)


130×100×25
130×100×50
130×100×102
130×100×206
Remark:
The above parameters do not include connectors;
If connectors are added, the insertion loss will increase 0.2dB each.


GUANGKING FACTORY OFFER YOU:


1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 7 DAYS.
4: NO MOQ, 1PC OK. SMALL ORDER WELCOME...
5: ONLINE PAYMENT.
6. SUPPORT 7 DAYS REFUND.
7. AFTER SALES SERVICES 24/7.



HLB1aga4SbvpK1RjSZPiq6zmwXXaO.jpgHLB1Tt95SirpK1RjSZFhq6xSdXXaa.jpgHLB1lj17SXzqK1RjSZFoq6zfcXXaY.jpg
