2X2 50:50 Single-mode Fiber Coupler
comment:0
Product Details
Code: GP-FGC050601

                                                                        2X2 50:50 Single-mode Fiber Coupler

Description:


  1. fbt splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

  2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

  3. Gapho provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE

  4. Gapho offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x4 ports for tree couplers, and from 2x2 up to 4x4 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).


Feature:


Materials in line with the IEC standard connector

Distribution frame in the ODF to achieve sub-line

Low PDL

Compact Design

Low Insertion loss

Good channel-to-channel uniformity

Good direction,Good interchangeability

Powerful anti-environmental change


Application:


Long-haul Telecommunications

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

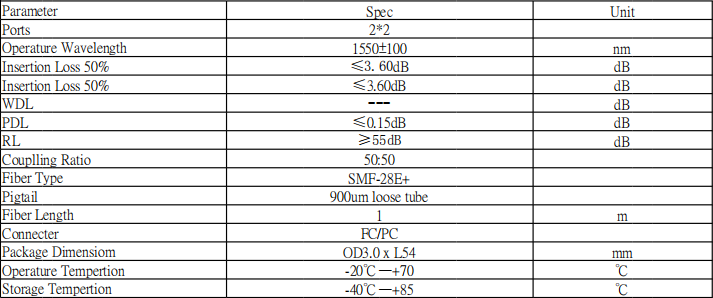

Performance Specifications:
