Fiber optic panel 3U simple
comment:0
Product Details
Code: GP-P71004

Fiber optic panel 3U simple

Constructionof the drawer (without guide rails)

3U fiber optic panel is an innovativedesign that allows the twining of 12 fiber in a single cassette. With an amount of 10panels per panel, this gives the

number of 120 fibers in the panel. This numbercan be doubled using MTRJ or LC technology (duplex adapters). Anadditional benefit is the ability to

use cassettes with differentconnection standards, so that one network application can be used with onemodular panel.




Basic features:

• compliance with the standards ZN 96 / TPSA-009

• modular design, 3U frame plus cassette

• each cassette has 1 PG11 input

• possible installation of 24-fiber cables for adapters

MTRJ and LC duplex

• number of commutation fields for each cassette max. 12

• product for METRO, FTTx, CATV networks

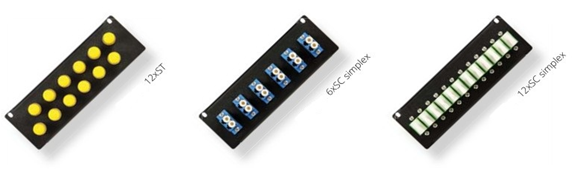

3U cassettes

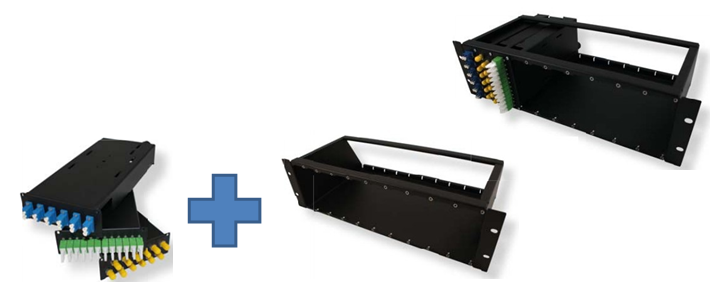

Modular construction panel equipment
