OSW-1×2光开关，性能处于业界领先水平。其插入损耗极低，体积小：27x12x8.2mm,是用于动态配置分插复用器OADM、交叉连接器OXC、系统监测与保护的理想器件。纤小的封装更易于集成进高密度的光通信系统中。
产品特点
·低插入损耗
·波长范围宽
·低信道串扰
·高稳定性、高可靠性
·独有专利技术、光路无胶
应用范围
·城域网
·实验室研发
·系统监测
·动态配置分插复用
技术参数:
型 号 |
| OSW-1×2 |
波长范围 | nm | 1260～1620 |
测试波长(可选) | nm | 1310/1490/1550/1625 |
插入损耗 | dB | Typ:0.5 Max:0.8 |
回波损耗 | dB | ≥50 |
信道串扰 | dB | ≥55 |
偏振相关损耗 | dB | ≤0.05 |
波长相关损耗 | dB | ≤0.25 |
温度相关损耗 | dB | ≤0.25 |
重 复 性 | dB | ≤±0.02 |
工作电压 | v | 3.0 or 5.0 |
使用寿命 | 次 | ≥107 |
开关时间 | ms | ≤8 |
传输光功率 | mW | ≤500 |
工作温度 | ℃ | -20～+70 |
储存温度 | ℃ | -40～+85 |
重 量 | g | 16 |

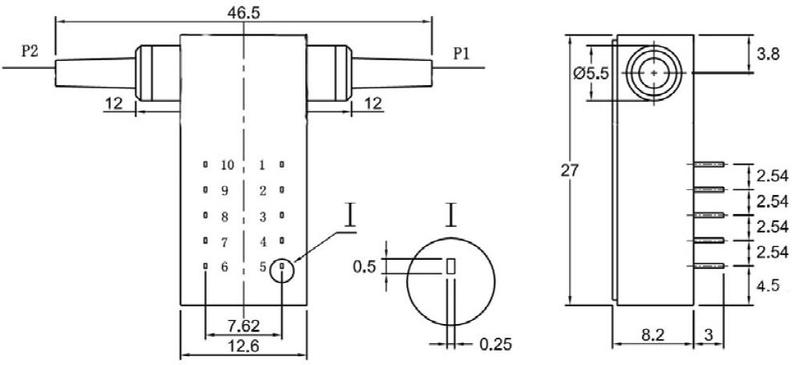

外形尺寸 | mm | 27x12x8.2(公差±0.1～0.2mm)
|
◇Features
l Low Insertion Loss
l Wide Wavelength Range
l Low Crosstalk
l High Stability, High Reliability
l Epoxy-free on Optical Path
l Latching and Non-latching
◇ Application
lMetropolitan Area Network
lR&D in Laboratory
lSystem Monitoring
lConfigurable OADM
◇ Performance
Parameters |
| OSW-1×1 |
Wavelength Range | nm | 650～1310 | 1260～1670 |
Testing Wavelength | nm | 650/780/850/980/1064/1310 | 1310/1490/1550/1625/1650 |
Insertion Loss | dB | Typ:0.6,Max:1.0 | Typ:0.5 ,Max:0.8 |
Return Loss | dB | ≥30 | ≥50 |
Crosstalk | dB | ≥35 | ≥55 |
PDL | dB | ≤0.05 |
WDL | dB | ≤0.25 |
TDL | dB | ≤0.25 |
Repeatability | dB | ≤±0.02 |
Power supply | v | 3.0 or 5.0 |
Lifetime | Cycle | ≥107 |
Switch Time | ms | ≤8 |
Transmission Power | mW | ≤500 |
Operation Temperature | ℃ | -40～+85 |
Storage Temperature | ℃ | -40～+85 |
Weight | g | 16 |
Dimension | mm | (L)27×(W)12×(H)8.2（±0.2) |
◇ Pins
Type | Optical Route | Electric Drive | Status Sensor |
1×1 |
| Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 |
Latching | Light close | -- | -- | GND | V+ | Close | Open | Open | Close |
P1-P2 | V+ | GND | -- | -- | Open | Close | Close | Open |
Non -latching | Light close | -- | -- | -- | -- | Close | Open | Open | Close |
P1-P2 | V+ | -- | -- | GND | Open | Close | Close | Open |
◇ Electrical parameters
| Voltage | current | Resistor |
5V Latching | 4.5~5.5 | 36~44mA | 125Ω |
5V Non-Latching | 4.5~5.5 | 26~32mA | 175Ω |
3V Latching | 2.7~3.3 | 54~66mA | 50Ω |
3V Non-Latching | 2.7~3.3 | 39~47mA | 70Ω |
◇Ordering Information：OSW－1×1－A－B－C－D－E－F－G
A | B | C | D | E | F | G |
Mode | Wavelength | Voltage | Control Model | Fiber Diameter | Fiber Length | Connector |
SM:9/125um M5: 50/125um M6: 62.5/125um | 85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm | 3: 3V 5: 5V | L: Latching N:Non-Latching | 25:250um 90:900um 20:2.0mm 30: 3.0mm | 05:0.5m 10:1.0m 15:1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
